Ref: 24VC / 24FM
Vent Caps / Flame Arrestors
Atmospheric protective devices designed to allow controlled bidirectional air and vapor exchange while helping prevent external flames, debris, and contaminants from entering protected systems.
JEETAN FLUID POWER
24VC / 24FM

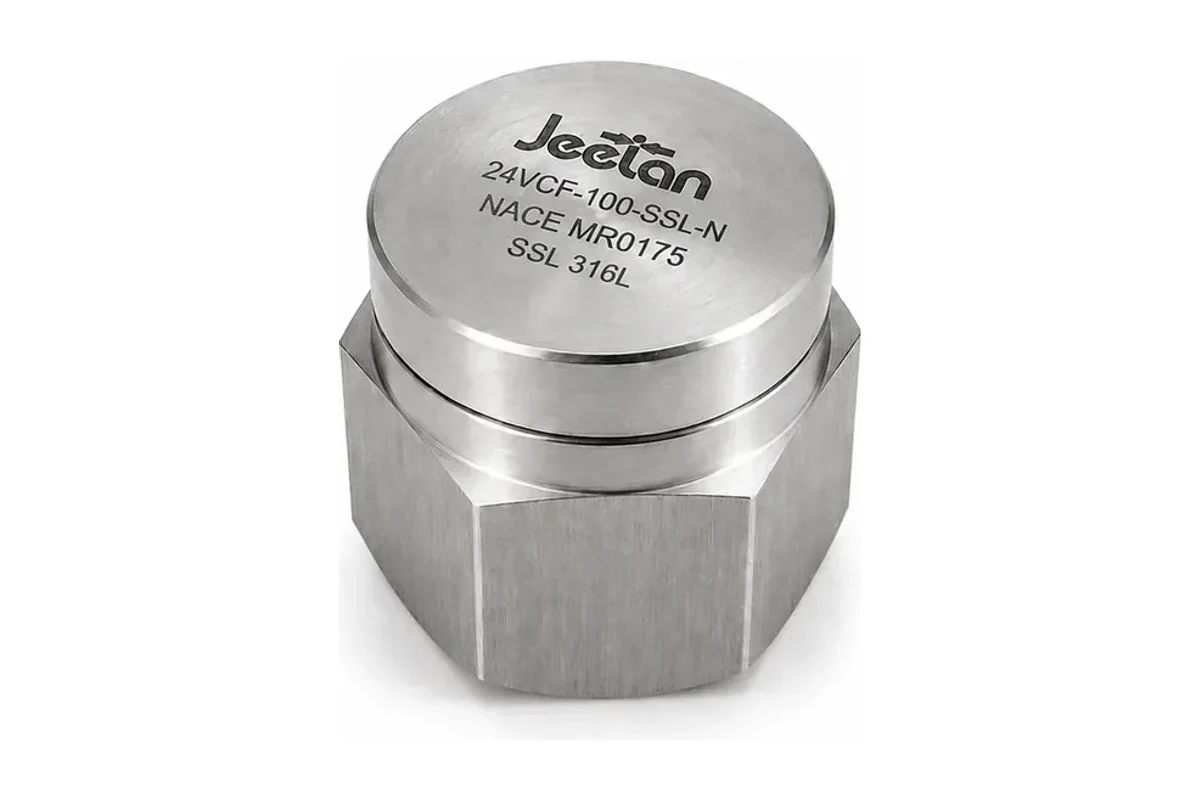

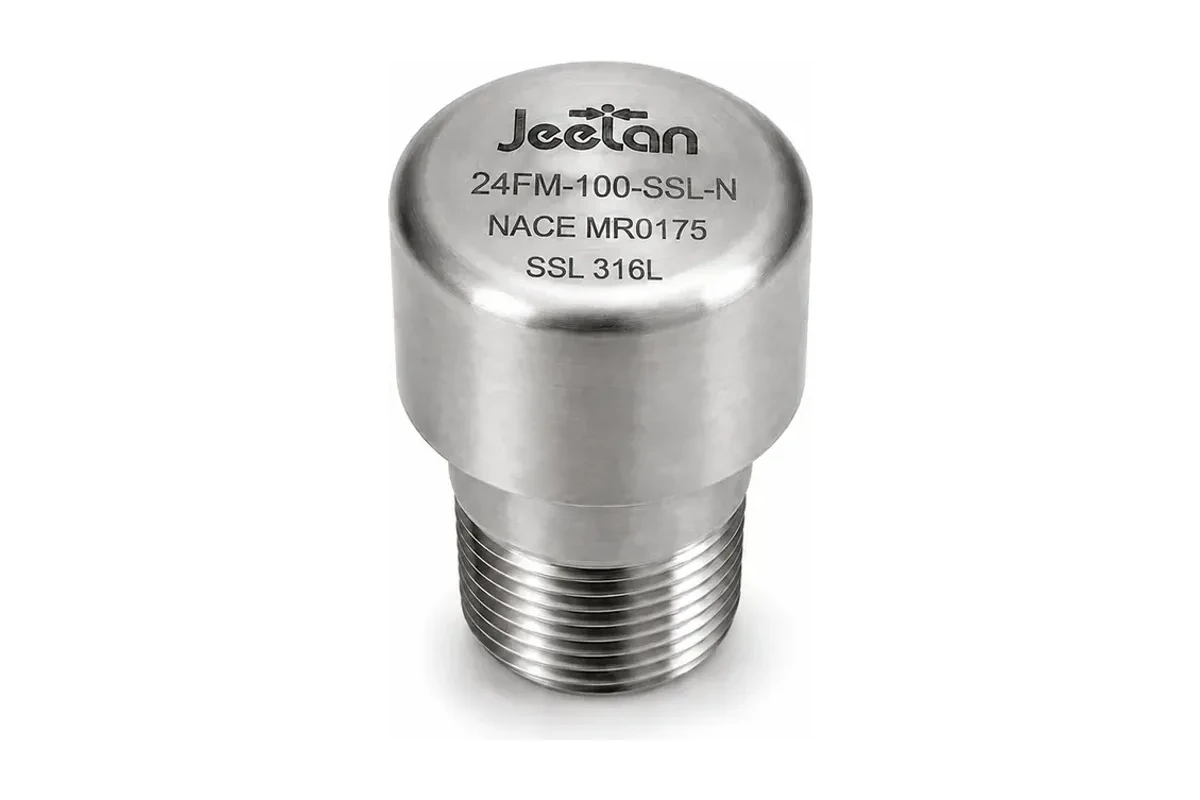

Image shown is representative. Actual product configuration and appearance may vary according to selected specifications and ordering code.
Venting Service
Atmospheric tank and hydraulic-reservoir venting service.
Manufacturing Base
Precision Machined · Mumbai Facility
Available Metallurgy
SS316/316L and application-specific alloy options are available, subject to product configuration and application requirements, with NACE MR0175 / ISO 15156 options where suitable for the configuration and application.
Engineering Features
- Dual Breathing & Flame Protection: Available as atmospheric tank weatherhood breathers and integrated stainless-steel mesh flame-arrestor configurations.
- Precision Multi-Layer Mesh Element: Stainless-steel mesh elements dissipate thermal energy to help prevent external ignition flashback and flame propagation.
- High-Flow Bidirectional Breathing: High-flow geometry supports free air and vapor exchange during liquid pump-in and pump-out cycles.
- Weatherhood Environmental Shielding: Removable weatherhood construction helps protect vent openings from rain, spray, dust, and airborne debris.
- Multiple Size & Connection Configurations: Available configurations span approximately 1–2 inch nominal sizes with threaded NPT/BSPT/BSPP connection options.
Target Applications
Hydraulic reservoir breathers, chemical storage tank vents, storage tank flame protection, atmospheric vent headers, and lube-oil system consoles.
Confidential Technical Request
Request Technical Documentation for Vent Caps / Flame Arrestors
Our Mumbai engineering desk will review your application requirements and supply relevant dimensional drawings, material certificates, and configuration options.
