Ref: 2VM / 3VM / 5VM
Manifold Valves
Multi-way instrumentation manifolds providing integrated isolation, equalization, and venting functions for pressure and differential-pressure instrumentation.
JEETAN FLUID POWER
2VM / 3VM / 5VM
Image shown is representative. Actual product configuration and appearance may vary according to selected specifications and ordering code.
Pressure Capability
Pressure capability up to 10,000 PSI for threaded and flanged configurations.
Manufacturing Base
Precision Machined · Mumbai Facility
Available Metallurgy
SS316/316L and application-specific alloy options are available, subject to product configuration and application requirements, with NACE MR0175 / ISO 15156 options where suitable for the configuration and application.
Engineering Features

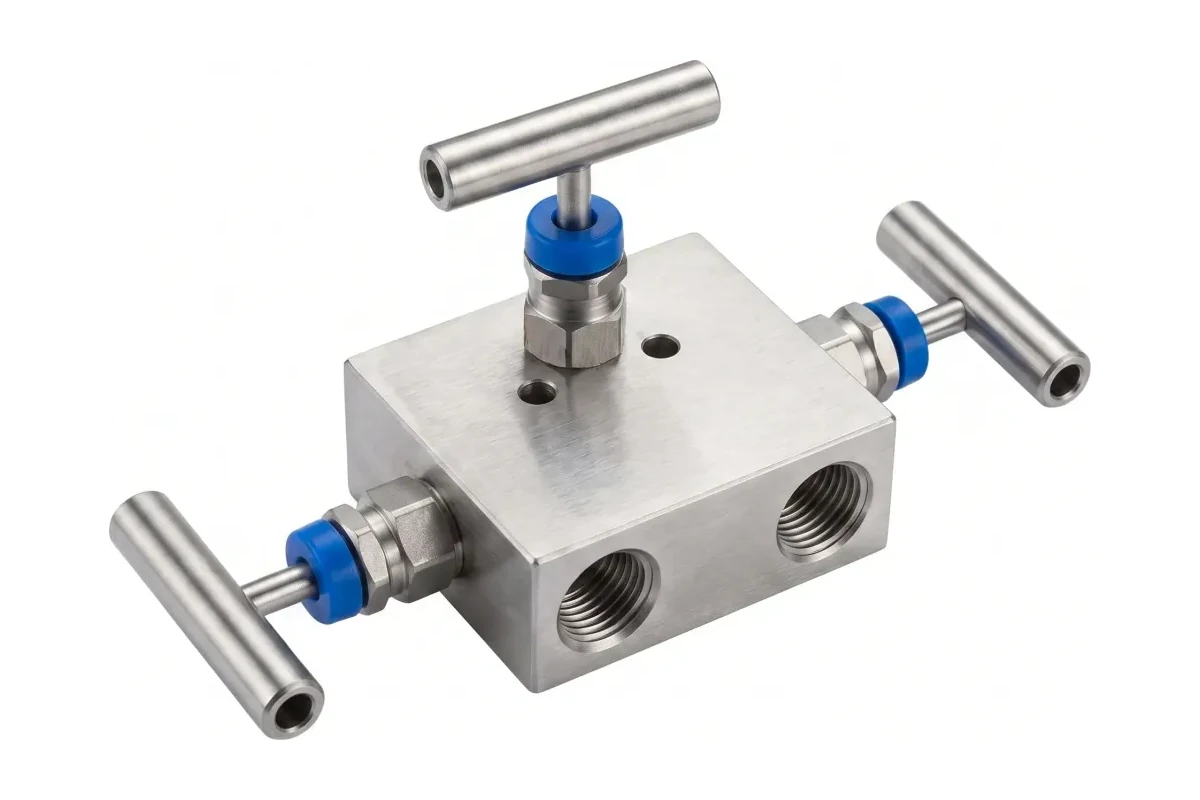

- 2VM, 3VM & 5VM Configurations: Available in 2VM, 3VM, and 5VM configurations for pressure and differential-pressure instrumentation.

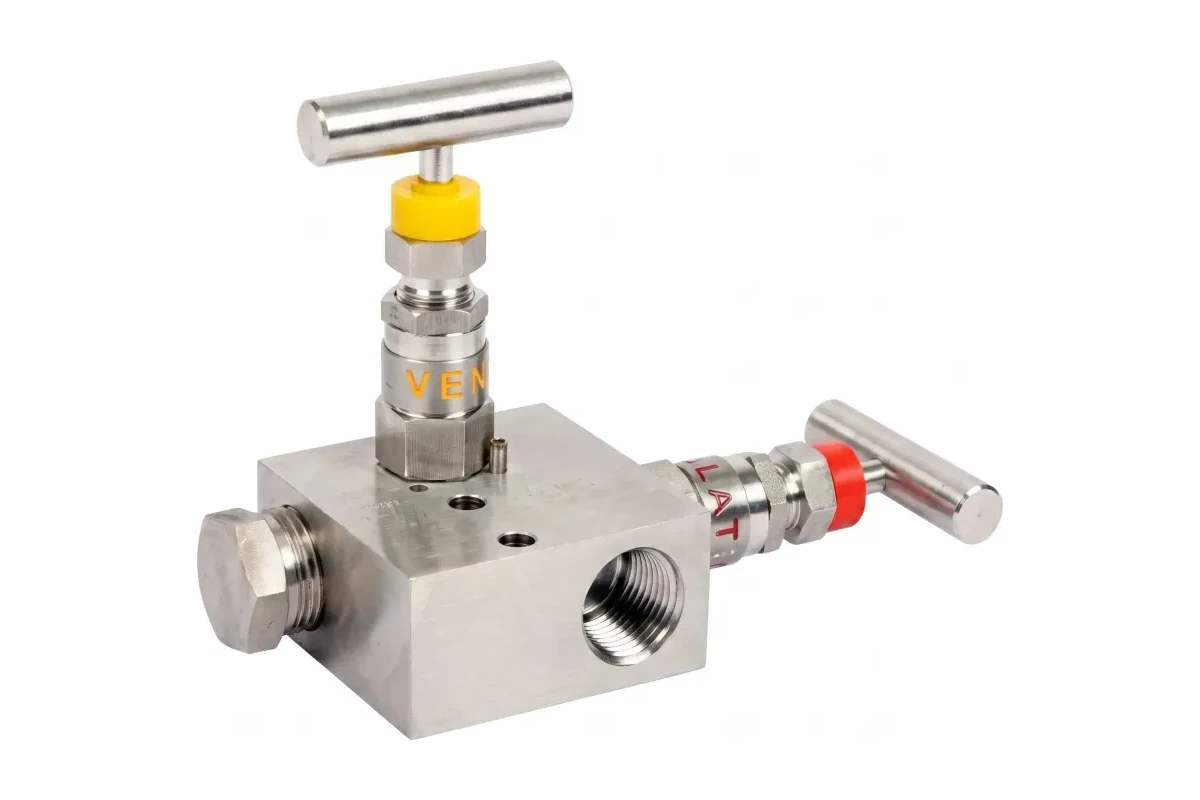

- Block & Bleed Functionality: Block-and-bleed functionality supports pressure gauge service.
- Isolation & Equalization: Controlled isolation and pressure equalization support differential-pressure instrumentation.

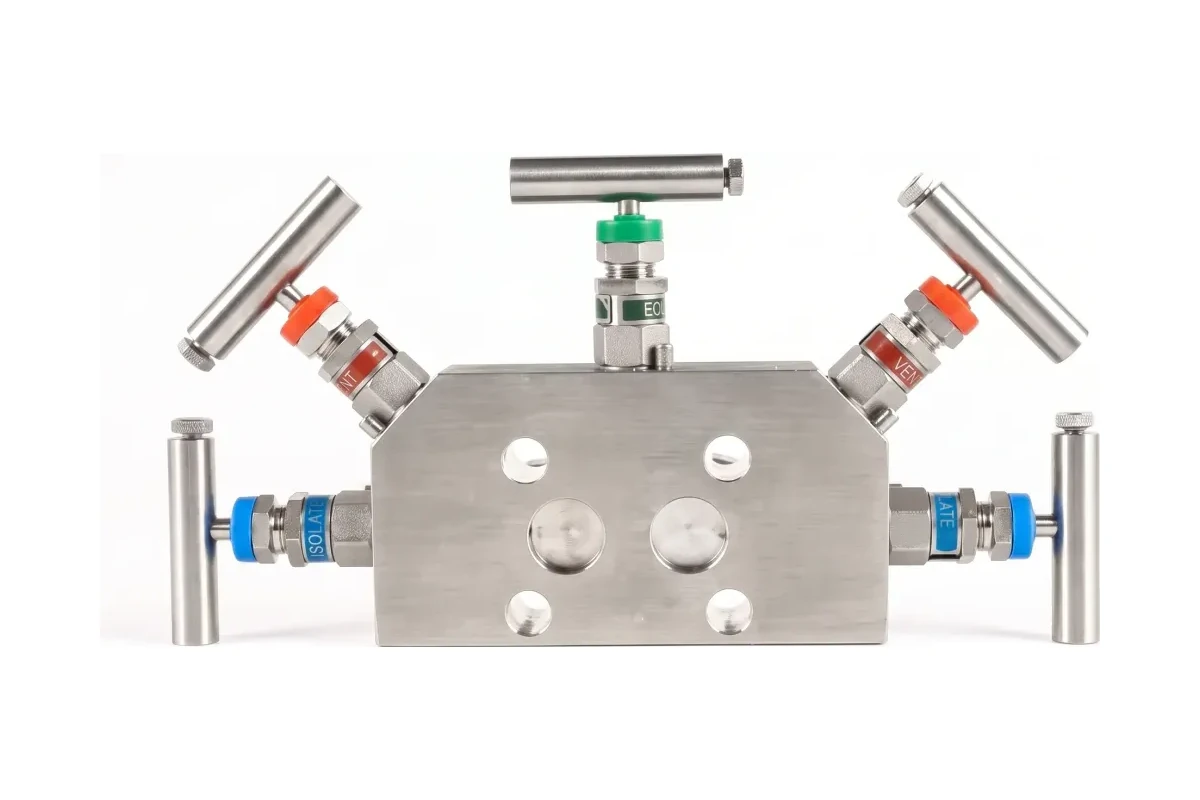

- Controlled Venting: 5-way configurations provide controlled venting for differential-pressure instrument applications.
- High-Pressure Connection Configurations: Threaded and flanged configurations support instrument service up to 10,000 PSI.
Target Applications
Pressure gauge service, differential-pressure measurement, instrument isolation, equalization and venting, and process instrumentation.
Confidential Technical Request
Request Technical Documentation for Manifold Valves
Our Mumbai engineering desk will review your application requirements and supply relevant dimensional drawings, material certificates, and configuration options.
