Ref: 20DBB1 / 20DBB2 / 20DBB3
Double Block & Bleed Valves
Double Block & Bleed valves providing two primary isolation barriers with an integral bleed path for controlled venting, pressure verification, and maintenance in gas and fluid service.
JEETAN FLUID POWER
20DBB1 / 20DBB2 / 20DBB3
Image shown is representative. Actual product configuration and appearance may vary according to selected specifications and ordering code.
Pressure Capability
Pressure capability up to 10,000 PSI; family-wide operating temperature range: −30°C to +130°C.
Manufacturing Base
Precision Machined · Mumbai Facility
Available Metallurgy
SS316/316L and application-specific alloy options are available, subject to product configuration and application requirements, with NACE MR0175 / ISO 15156 options where suitable for the configuration and application.
Engineering Features
- 20DBB1 / 20DBB2 / 20DBB3 Configurations: Available as 20DBB1, 20DBB2, and 20DBB3 configurations.

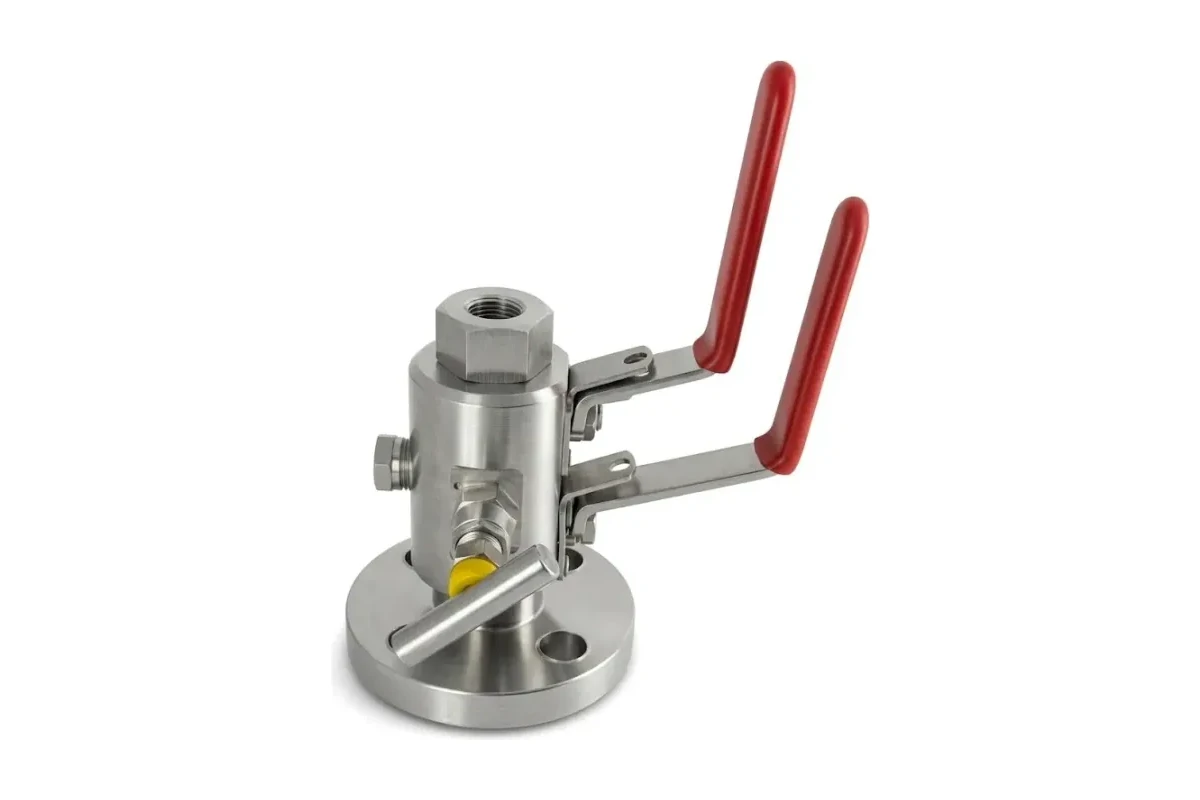

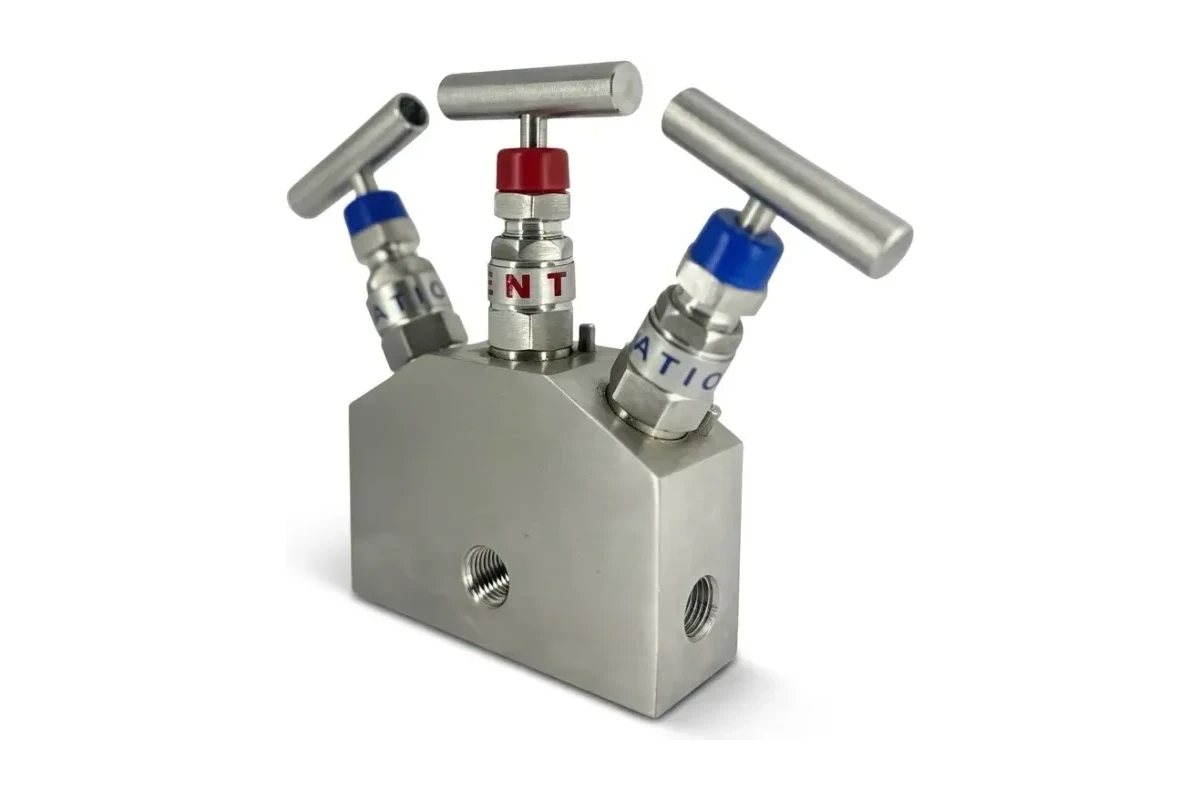

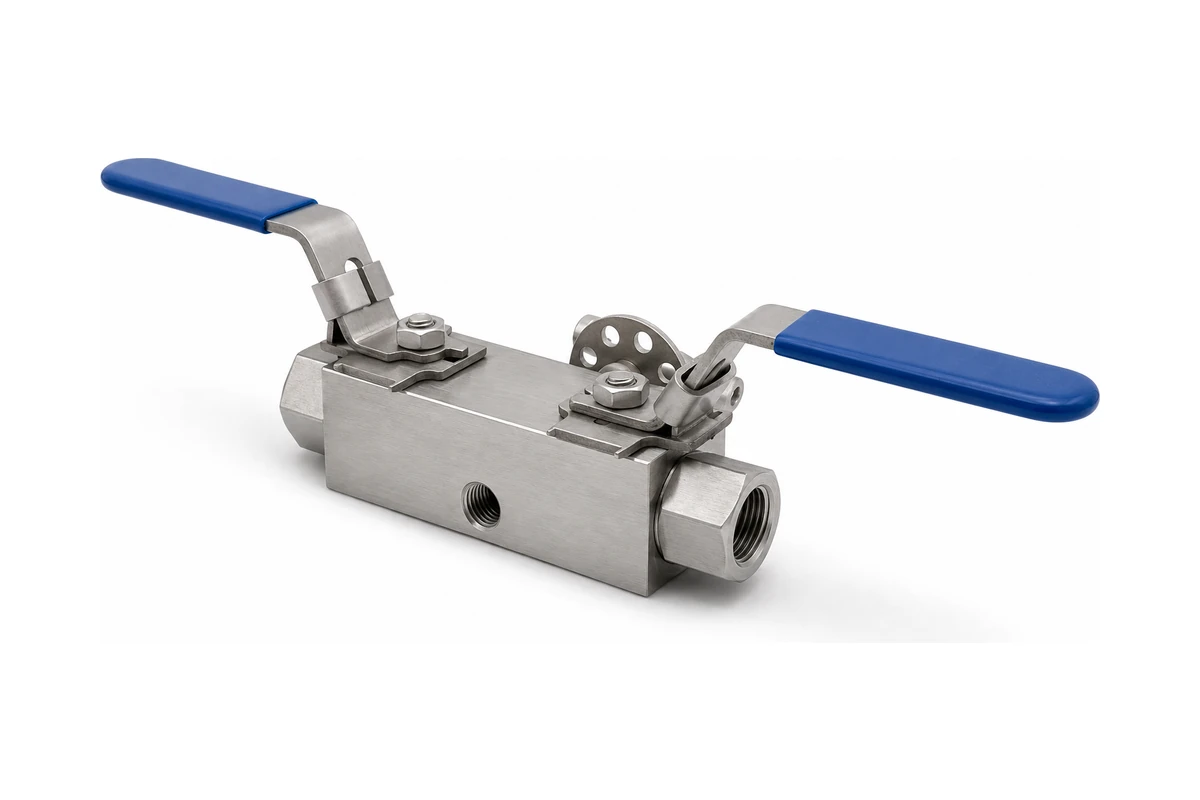

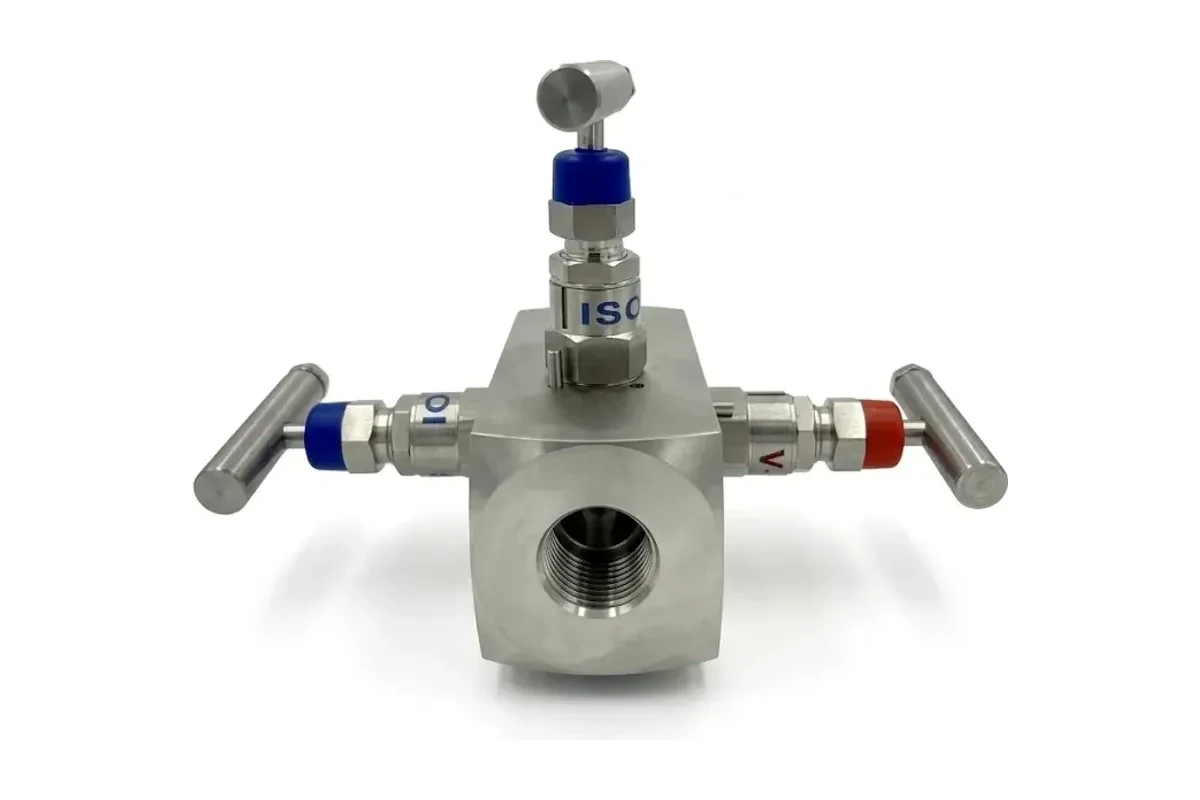

- Connection Arrangements: NNN, BNB, and Flange × NPT arrangements are available with multiple port sizes and connection variations.
- Full-Bore & Reduced-Bore Options: Full-bore and reduced-bore configurations are available for gas and fluid service.
- Dual Isolation with Integral Bleed: Two primary isolation barriers and an integral bleed path support controlled venting and pressure verification before instrument maintenance.
- Testing & Fire-Safe Provisions: Hydrostatic, pneumatic leakage, and gas leak testing are available, with 100% factory testing and fire-safe provisions for applicable configurations.
Target Applications
Process isolation, instrumentation isolation, pressure verification and venting, high-pressure gas and fluid systems, and integrated panel installations.
Confidential Technical Request
Request Technical Documentation for Double Block & Bleed Valves
Our Mumbai engineering desk will review your application requirements and supply relevant dimensional drawings, material certificates, and configuration options.
