Instrumentation & Control
Precision 2-, 3-, and 5-valve manifolds, high-pressure needle valves, gauge isolation valves, and Double Block & Bleed hardware engineered for accurate process measurement, with ratings up to 10,000 PSI (series dependent).
Process Instrumentation & Measurement Dynamics
Process measurement accuracy depends fundamentally on the integrity of the interface between process impulse lines and sensitive pressure, flow, and level transmitters. Leaks, dead legs, or stem displacement in manifold valves directly cause measurement drift, calibration errors, and costly process downtime.
Jeetan Fluid Power manufactures high-integrity instrumentation manifolds, non-rotating stem needle valves, and compact Double Block & Bleed (DBB) assemblies in Mumbai. Designed for direct and remote transmitter mounting up to 10,000 PSI, JFP manifolds feature standard 54mm (2-1/8") mounting centers compatible with IEC 61518 dimensional patterns and MSS SP-99 / ASME B16.34 design principles.
Operating Conditions
Critical Engineering Challenges
Measurement Accuracy & Zero Dead-Volume
Direct-mount manifold passages must be precision-machined with smooth internal geometries to eliminate air trapping, condensation, and signal dampening.
Bubble-Tight Stem Sealing
Non-rotating needle stems prevent seat scoring and galling during repeated zero-checking and calibration routines.
Compact Impulse Line Hook-Ups
Consolidated multi-valve manifolds eliminate multiple threaded pipe connections, drastically reducing potential leak paths and assembly labor.
Product Lineup
Relevant JFP Products for Instrumentation & Control
Explore specific valve configurations engineered to solve Instrumentation & Control operational challenges up to 10,000 PSI.
Manifold Valves
2-, 3-, and 5-valve direct-mount manifolds for pressure and DP transmitters.
Needle Valves
Non-rotating stem needle valves for precise gauge root and test port isolation.
Double Block & Bleed Valves
Modular dual-isolation and bleed valves for high-pressure process tapping points.
Ball Valves
Bi-directional shut-off ball valves for rapid impulse line isolation.
Check Valves
Spring-loaded check valves preventing backflow into sensitive analyzer loops.
Adjustable Orifices
Fine-threaded variable restrictors for dampening pressure transmitter pulsations.
System Deployments
Typical Installations & Hook-Ups

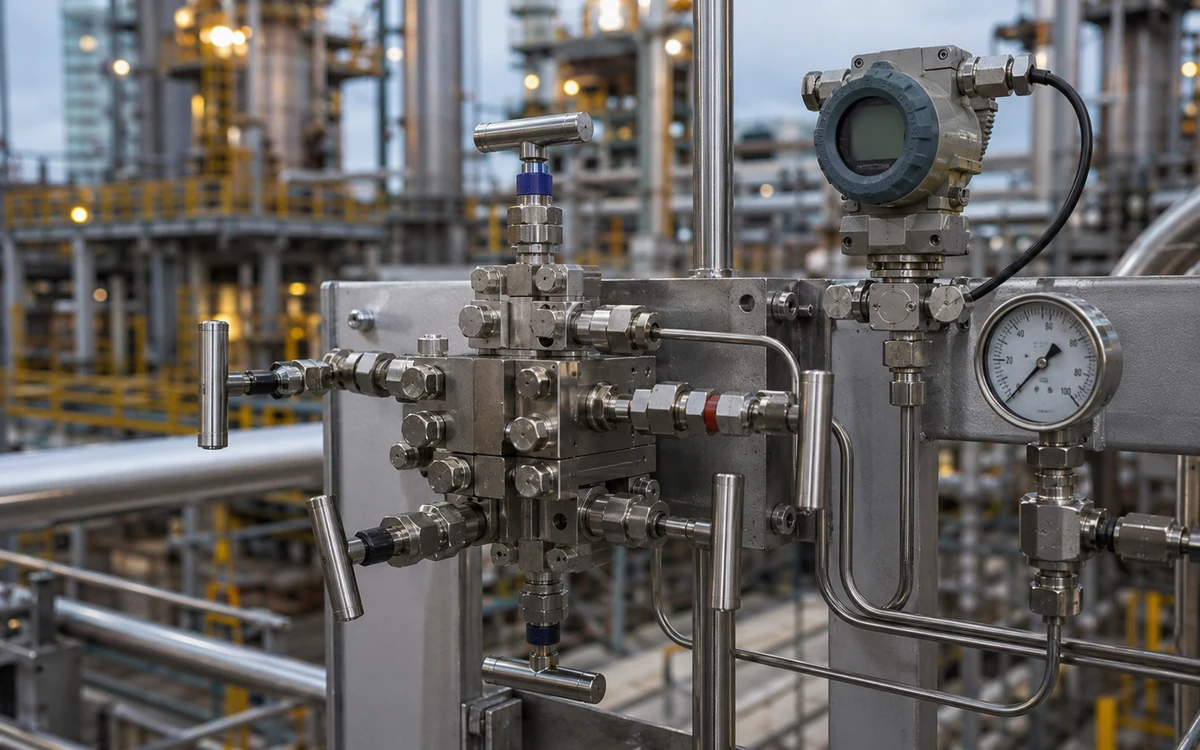

Differential Pressure (DP) Flow & Level Transmitter Hook-Ups
5-valve manifolds providing block, equalizing, and vent functions for orifice meter runs and level transmitters.
Pressure Gauge & Pressure Switch Root Isolation
2-valve and multi-port gauge root valves enabling in-situ calibration and gauge replacement without shutdown.
Continuous Emission Monitoring & Process Sampling Systems
Needle valves and manifolds isolating extractive gas and liquid sample conditioning lines.
High-Pressure Impulse Line Calibration & Bleed Ports
Compact Double Block & Bleed valves providing verified zero-pressure condition during transmitter re-zeroing.
Engineering Applications
Engineering & Industrial Applications
JFP valves, manifolds, and fluid control hardware are configured for severe-service applications across energy, process, infrastructure, and heavy manufacturing systems.
Discuss Your Instrumentation & Control Requirements
Our engineering team in Mumbai provides technical data sheets, material compatibility guidance, and project quotations tailored to your operational conditions.
