High-Performance
Instrument Manifold Valves
Jeetan Manifold Valves are designed for efficient isolation, venting, and calibration of pressure instruments such as transmitters, gauges, and switches.
These valves integrate multiple valve functions into a single compact body, reducing installation complexity and minimizing potential leak points. They are widely used in instrumentation systems to ensure safe operation and easy maintenance.
- Compact multi-function design
- Reduces installation space and leak paths
- High-pressure capability up to 10,000 PSI
- Smooth and precise operation
- Robust stainless steel construction
- Suitable for instrumentation applications
Configurations Available
1. 2-Way Manifold Valve:
- Provides basic isolation function
- Used for simple on/off control of pressure instruments
- Ideal for gauge isolation applications
2. 3-Way Manifold Valve:
- Provides isolation and venting capability
- Allows safe removal or calibration of instruments
- Commonly used with pressure gauges and switches

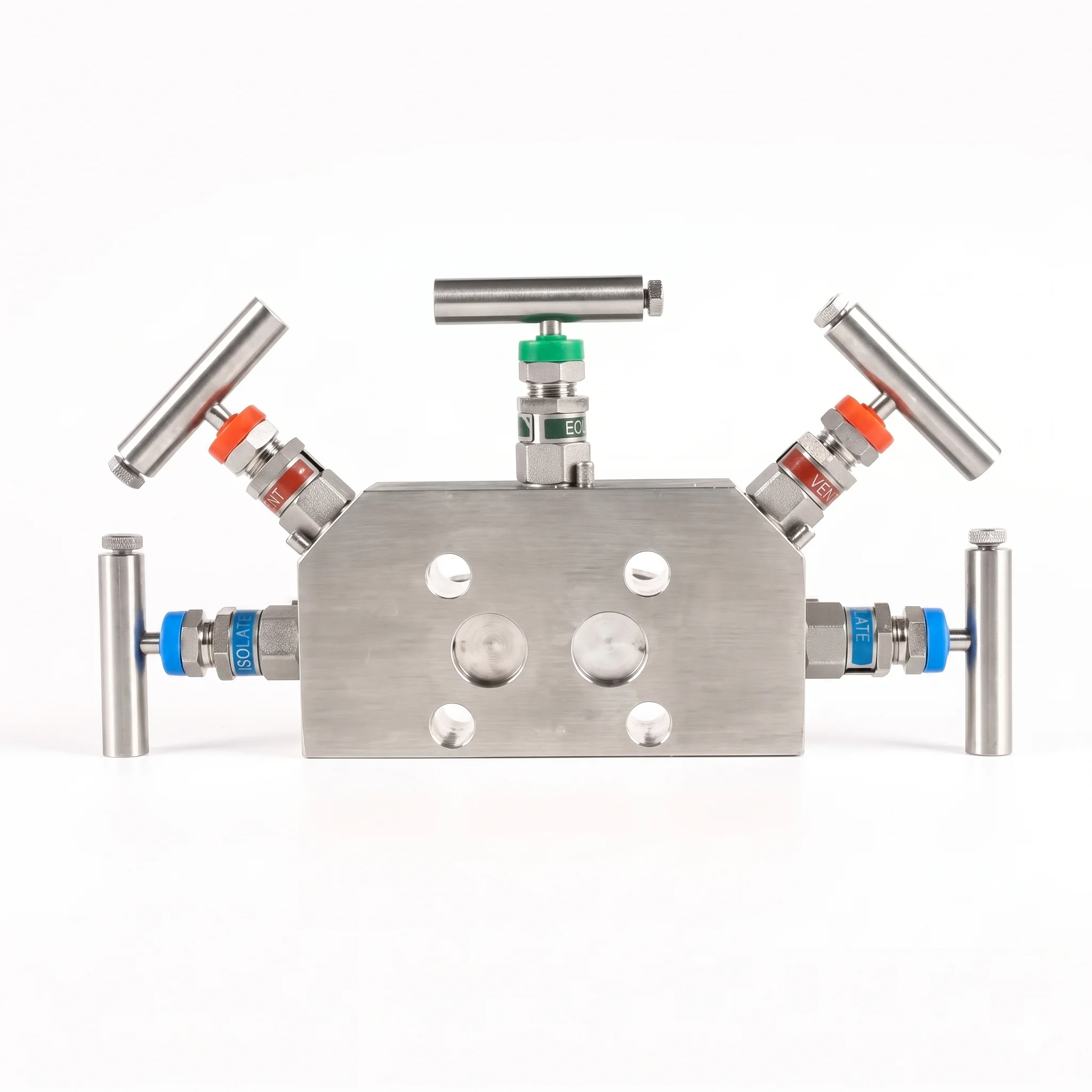

3. 5-Way Manifold Valve:
- Includes two isolation valves, one equalizing valve, and two vent valves
- Enables calibration and pressure balancing for differential pressure transmitters
- Widely used in advanced instrumentation systems
Available in multiple configurations, these manifold valves provide flexibility for different system requirements.
Design & Construction
Jeetan Manifold Valves are manufactured using high-quality materials such as SS316, Inconel, Duplex, and other corrosion-resistant alloys.
The precision-engineered internal components ensure leak-tight performance and reliable operation under high pressure and temperature conditions.
Available with PTFE, PEEK, or metal-to-metal seats depending on application requirements.
Target Applications
- Pressure transmitters
- Pressure gauges and switches
- Differential pressure systems
- Oil & Gas instrumentation
- Petrochemical industries
- Process control systems
General Specifications
Detailed technical data available upon request.
Why Choose Our Manifold Valves:
Multiple functions in a single compact unit
Easy installation and maintenance
Reduced leakage points
Reliable performance in critical applications
Flexible configurations for various instrumentation needs
Need Technical Details or Pricing?
Our engineering team will assist you with the exact valve configuration required for your specific industrial application.
Request Datasheet
